For outdoor areas

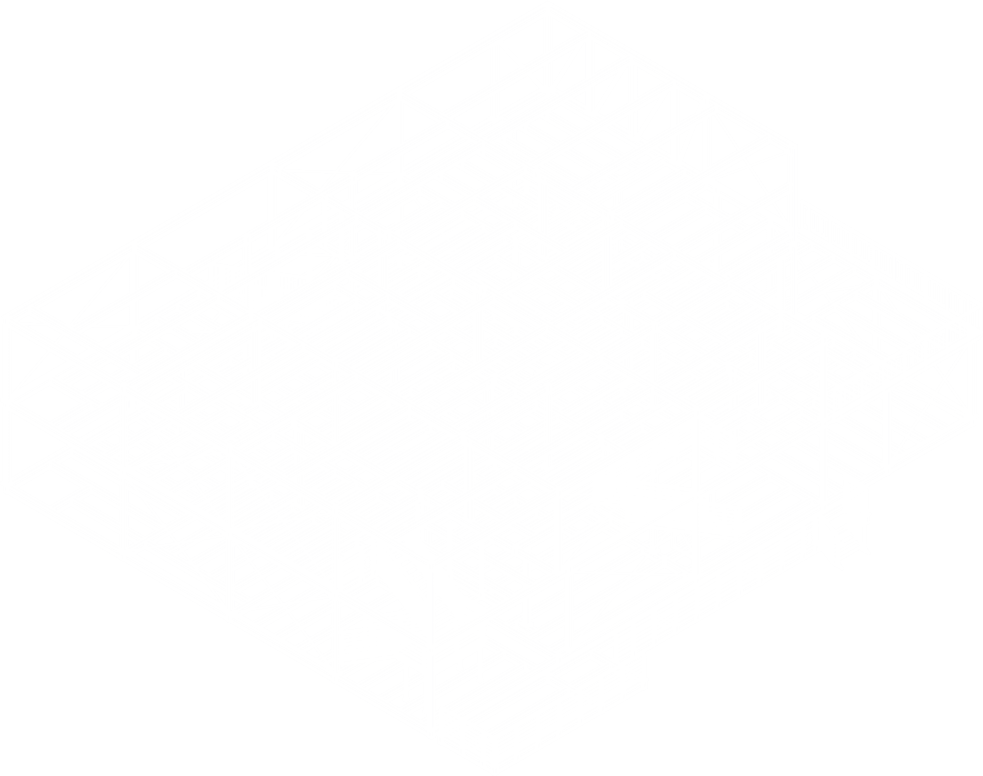

• Modular girder system made of steel beam IPE 270 for two- or three-storey structures
• span of steel beams up to 7 m, in steps of 0.5 m
• live load 3.0 kN/m², increase to 5.0 kN/m² possible
• Supports made of HE-A 160, IPE 270 profiles
• Standard installation heights 16 – 21 pitches, installation heights 2848 – 3738 mm, other heights possible
• Minimum installation height floor assembly 534 mm
• Roof construction Heights 2848 – 3738 mm
• Supporting structures with visual requirements are painted in FEYCO 13702 dark grey
• Roof sealing with foil or thermal roof elements possible
• Facade cladding with thermal wall elements and/or glass facades in various designs
